In the field of industrial wastewater treatment and ozone disinfection, there are mainly three types of ozone generators on the market: plate, tube, and panel. For over a century, the tube-type ozone generator (DBD discharge chamber structure) has been the mainstream product.

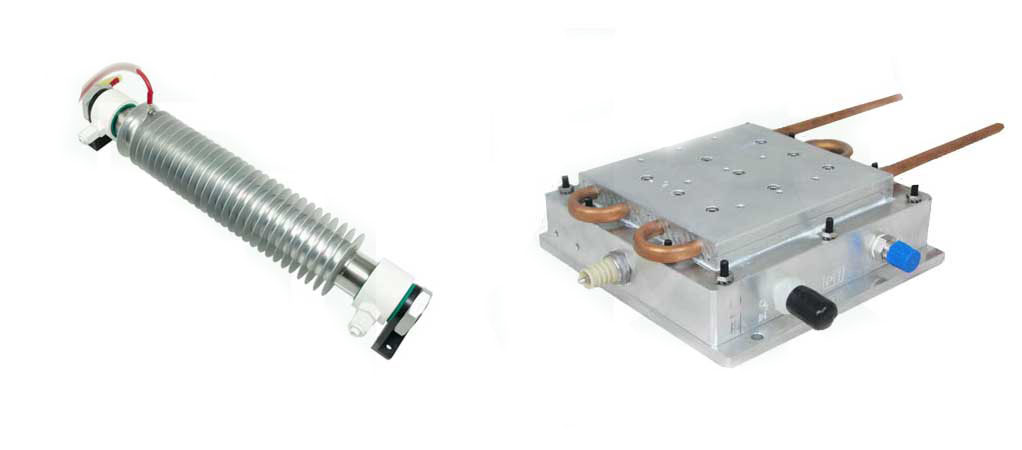

The plate-type ozone generator is mainly used for small-scale space disinfection. In recent years, the panel-type ozone generator has received increasing attention. In this article, we will focus on the differences between the tube-type and panel-type ozone generators.
1、Ozone Generator Principle
The principle of the tube-type ozone generator: There is a certain number of pipes welded between two fixed tube plates inside the ozone generator to act as grounding electrodes. The electrodes are placed in the grounding pipes, each consisting of a high-voltage electrode, a stainless steel screen, and a dielectric glass tube. Ozone is generated between the grounding electrodes, dielectrics, and high-voltage electrodes.
The principle of the panel-type ozone generator:
Adopts the corona discharge technology, under the strong power of high voltage electric fields, high-speed moving electrons impact oxygen to decompose it into oxygen atoms. High-speed electronics have sufficient kinetic energy. Through the interaction of oxygen atoms, oxygen molecules, and high-speed electrons, triboluminescence occurs and forms ozone.
2、Key Technical Parameters and Product Form Comparison of Plate and Tube Ozone Generators: Tube-type Ozone Generator: Ozone concentration range: 10-130mg/L Site coverage: Large Basic structure: Tube-type structure Production process: Tank container processing, bending plate, lifting and welding forming, enamel sintering and glass pipe stretching. Application: Space disinfection\ Ozonated water, used for water treatment.
Panel-type Ozone Generator:Ozone concentration range: 0-300mg/L
Site coverage: Small
Basic structure: Flat plate structure
Production process: Assembly by electronic products assembly lines, CNC machine cutting in processing centers, tunnel furnace thick film circuit processing of lead electrode and protective medium, plasma metal surface ceramic processing.
Application: Drug synthesis, semiconductor, ALD, high-concentration ozone water preparation, etc.
3、MaterialsThe electrode materials for the panel-type ozone generator are pure silver, pure titanium, aluminum magnesium titanium alloy; the dielectric material is electronic grade ceramic; the sealing material is fluoroplastic rubber and Hevea brasiliensis rubber.
For the tube-type ozone generator, the electrode materials are stainless steel (304,316), carbon steel (A3); the dielectric material is glass and enamel; the sealing material is silicone rubber.
