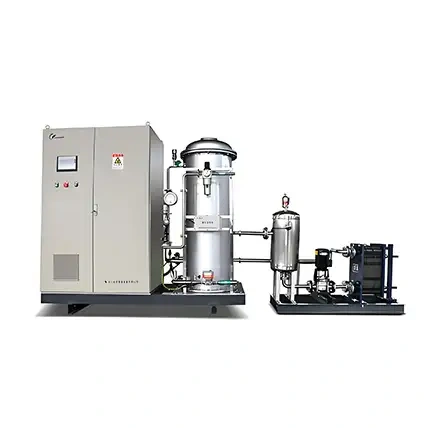

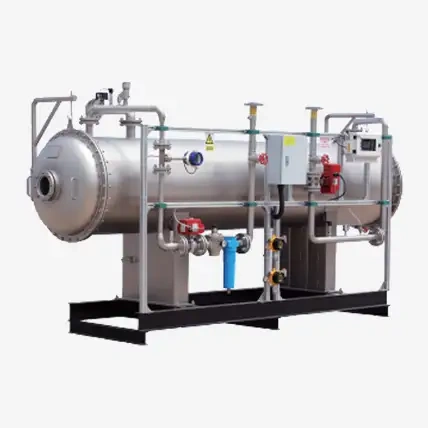

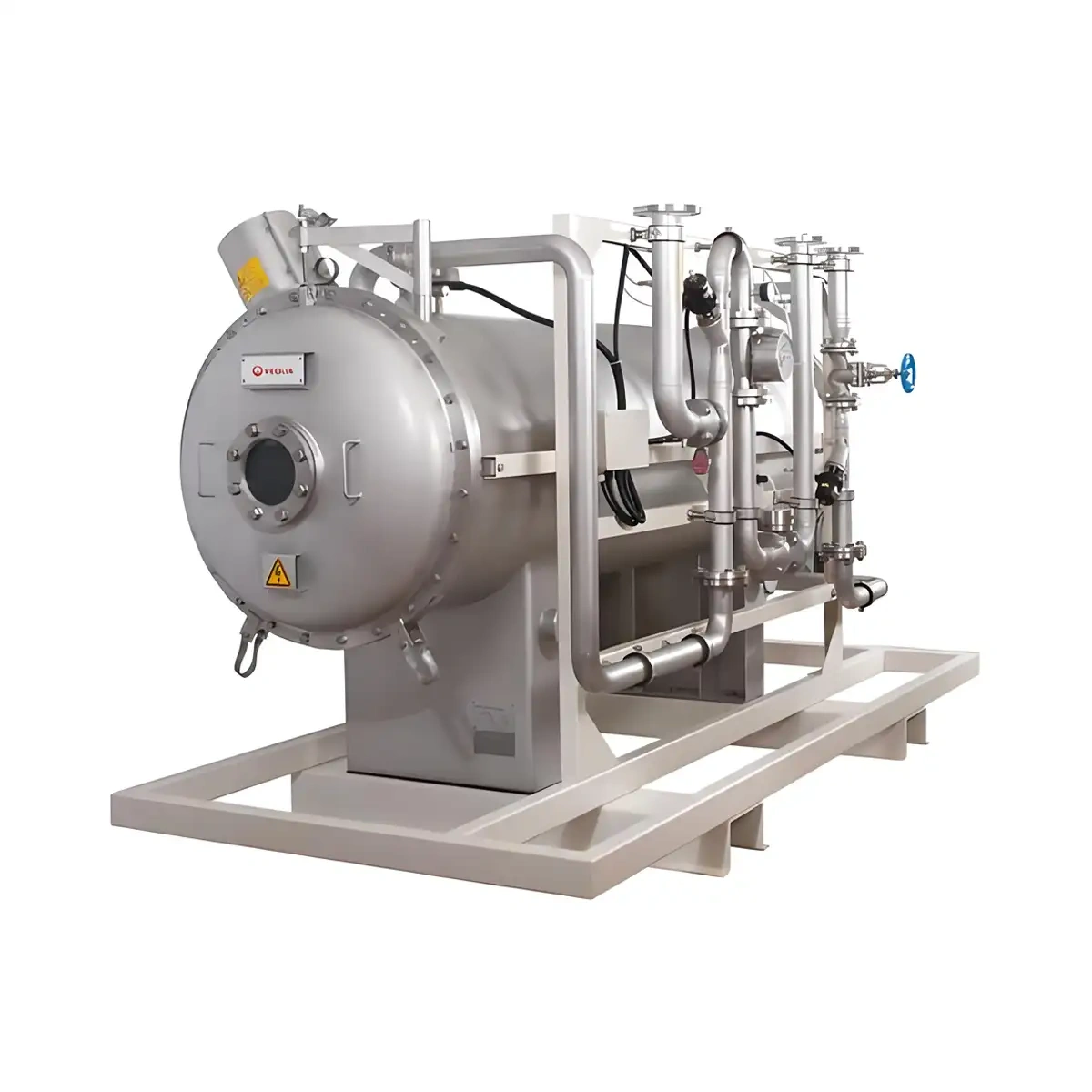

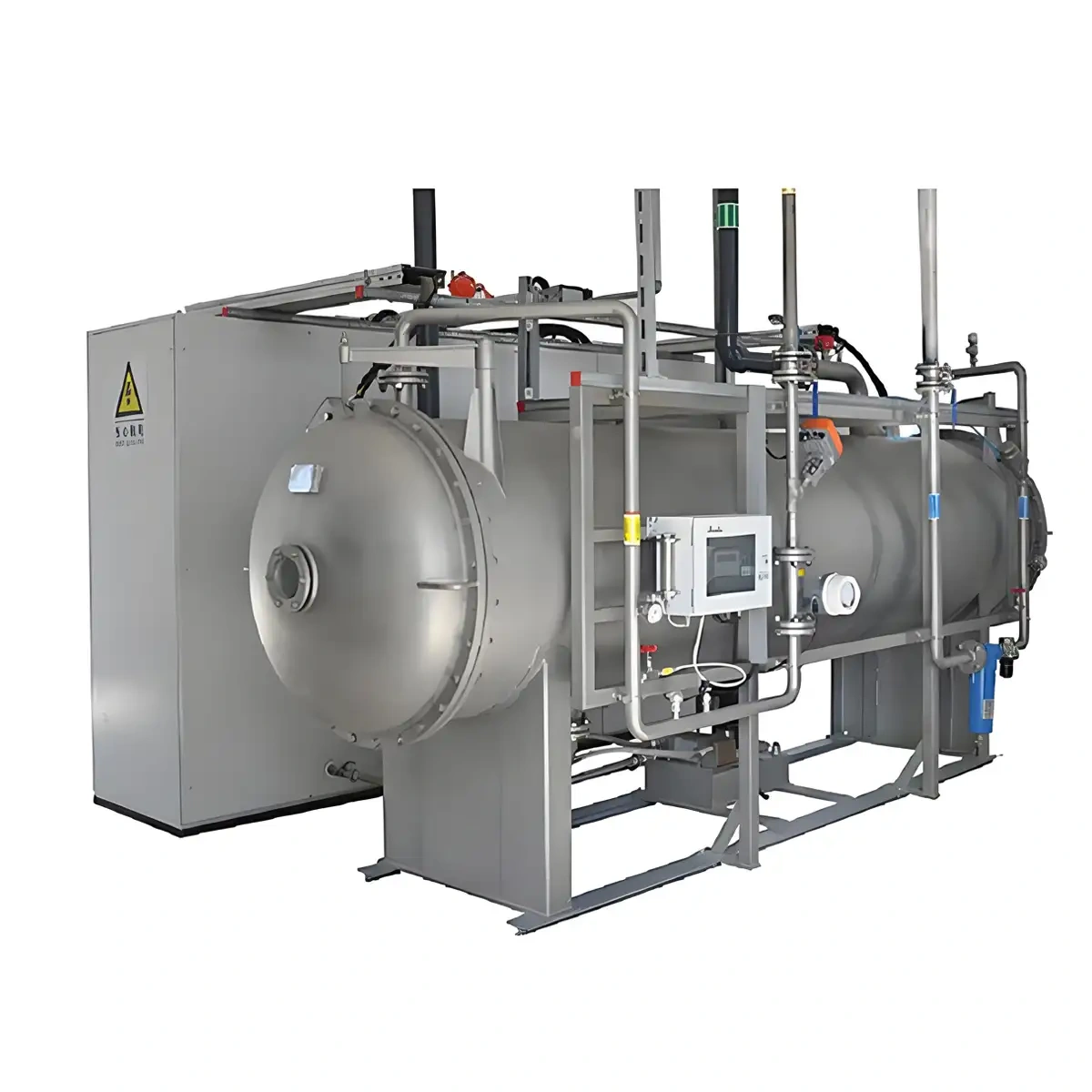

Provide 1kg/h-30kg/h full series of large ozone generator, to meet the industrial flue gas denitrification, wastewater treatment, garbage leachate and other large-scale ozone generator application needs of most of the environmental protection projects, if you need, please contact us, we will provide a complete ozone and technical solutions.
The equipment contains multiple protection measures:
protection from the intake pressure too low, protection from the outlet temperature too high, protection from the liquid level, protection from the flow rate too low, protection from the overheating, protection from the ozone leakage protection, protection from the equipment overheating, and other protection measures.
The ozone generator room and ozone generator unit are made of 316L material, the overall material is no less than 304 stainless steel, and the sealing and insulating parts are made of polytetrafluoroethylene and fluoroelastic. The chamber horizontal structure is used, and the discharge body is placed horizontally. The dual-discharge monomer is connected in series, which is conducive to increasing the ozone concentration and reducing power consumption, and the air-cooling design of the variable frequency power supply is safe and reliable. The PLC control panel is standard and can be equipped with various automatic instrument valves including temperature, pressure, flow rate, concentration detection, and control valves, which can effectively reduce energy consumption while meeting customer needs.
Performance Features:
1、The floor-standing integrated structure is equipped with external oxygen source or air source and water cooling, which makes the control instrument easy to view, the interface is laid out in the same direction, and is easy to install and maintain.
2、The discharge chamber adopts high-precision imported high-borosilicon glass tube microgap discharge technology and is efficiently integrated into a honeycomb structure.
3、The high-voltage power supply adopts high-voltage frequency converter or thyristor inverter power supply to achieve high concentration, low power consumption and stable output.
4、The control system can be selected for PLC control, which realizes automatic control of the entire process of water temperature, air temperature, pressure, flow rate, current, and ozone concentration.
Air source ozone generator parameters：
|
Model |
Ozone production kg/h |
Air intake |
Ozone concentration mg/l |
Cooling water flow m/h |
Power Kwh/kgo3 |
Size |
Weight |
|
CH-DA-1A |
1 |
40 |
25-40 |
3 |
15 |
1800X1600x1700 |
1.3 |
|
CH-DA-2A |
2 |
80 |
25-40 |
6 |
15 |
2100X1800x1800 |
1.9 |
|
CH-DA-3A |
3 |
120 |
25-40 |
9 |
15 |
3300X2100x1900 |
2.5 |
|
CH-DA-4A |
4 |
160 |
25-40 |
12 |
15 |
3300X3000X2050 |
3.2 |
|
CH-DA-5A |
5 |
200 |
25-40 |
15 |
15 |
3300X3000X2050 |
4.1 |
|
CH-DA-6A |
6 |
240 |
25-40 |
18 |
15 |
3300X3000X2050 |
5.0 |
|
CH-DA-8A |
8 |
320 |
25-40 |
24 |
15 |
3300X3200X2100 |
7.5 |
|
CH-DA-10A |
10 |
400 |
25-40 |
30 |
15 |
3300X3200X2100 |
8.5 |
|
CH-DA-15A |
15 |
600 |
25-40 |
45 |
15 |
3500X3500X2200 |
11.0 |
|
CH-DA-20A |
20 |
800 |
25-40 |
60 |
15 |
3500X3500X2200 |
13.5 |
|
CH-DA-25A |
25 |
1000 |
25-40 |
75 |
15 |
6000X4100X2500 |
16 |
|
CH-DA-30A |
30 |
1200 |
25-40 |
90 |
15 |
6000X4200x2500 |
1.3 |
Oxygen source ozone generator parameters：
|
Model |
Ozone production kg/h |
Air intake |
Ozone concentration mg/l |
Cooling water flow m/h |
Power Kwh/kgo3 |
Size |
Weight |
|
CH-DA-1Y |
1 |
8.5 |
120-150 |
2 |
7 |
1500x800x1700 |
0.8 |
|
CH-DA-2Y |
2 |
17 |
120-150 |
3 |
7 |
1800x1600x1700 |
1.3 |
|
CH-DA-3Y |
3 |
25 |
120-150 |
5 |
7 |
1800X1600x1700 |
1.5 |
|
CH-DA-4Y |
4 |
34 |
120-150 |
8 |
7 |
2100X1800x1800 |
1.9 |
|
CH-DA-5Y |
5 |
42 |
120-150 |
10 |
7 |
2100x1800X1800 |
2.2 |
|
CH-DA-6Y |
6 |
50 |
120-150 |
13 |
7 |
3300X2100X1900 |
2.5 |
|
CH-DA-8Y |
8 |
67 |
120-150 |
15 |
7 |
3300X3000X2050 |
3.2 |
|
CH-DA-10Y |
10 |
84 |
120-150 |
30 |
7 |
3300X3000X2050 |
4.1 |
|
CH-DA-20Y |
20 |
167 |
120-150 |
45 |
7 |
3300X3200X2100 |
8.5 |
|
CH-DA-30Y |
30 |
250 |
120-150 |
2 |
7 |
3300X3200X2100 |
11 |
Ozone generator functionality can be customized based on the customer's specific application needs and functional requirements. We can design and manufacture ozone machines that meet our customers' specific needs according to their requirements.
The appearance of the ozone generator can be customized according to the customer's requirements. The customer can provide a sample drawing as a reference, or after communicating with our technicians about their needs, our technicians will design an appearance drawing of the equipment that meets the requirements.
According to the user's ozone generator usage needs and on-site environment, we can tailor the ozone application plan and provide visual process diagrams and installation instructions.
Customers initiate ozone generator price inquiries through the contact information on our company's website or other platforms.
Communicate with customers to learn more about the function, appearance and application requirements of the ozone generator to ensure that the ozone generator can fully meet the user's needs in actual applications.
According to the customer's needs, we will produce a detailed ozone generator product and application plan.
Communicate product plans with customers and adjust and improve the deficiencies in the plans.
After the product plan is determined, we will confirm the terms and amount of the customized contract with the customer.
According to the customer's customized ozone generator order, we will arrange the workshop for production, and the specific production cycle will be determined according to the provisions of the contract.
Before the ozone generator is shipped, we perform operational tests to ensure that the device operates properly and functions correctly.
We will arrange international logistics and freight to ensure that the goods are safely delivered to the location designated by the customer. Subsequently, our customer service team will follow up the after-sales service of the product.
Q Are you trading company or manufacturer?
A We are a company integrating factory and trade.
Q How long is your delivery time?
A Generally it is 5- 10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q What is your terms of payment ?
A We support T/T, Western union, Alipay , Paypal, L/C.
Q Are you provide the after-sales service ?
A Yes,we offer one year warranty, and we have adedicated after-sales service team to provide you with the whole process.
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
